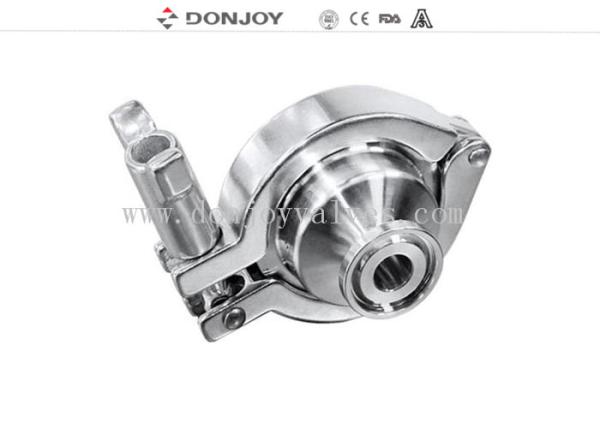

SS316L 2.5 Inch Hydraulic Check Valves Middle Clamp Type Non Retention

Name: SS316L 25 Inch Hydraulic Check Valves Middle Clamp Type Non Retention
Brand: DONJOY
Price: 1 USD

Quality SS316L 2.5 Inch Hydraulic Check Valves Middle Clamp Type Non Retention wholesale

Brand Name : DONJOY

Model Number : NO.MINI-VAQ100S1

Certification : CE,3A,FDA

Place of Origin : CHINA

MOQ : Negotiation

Payment Terms : T/T, LC, Credit Card

Packaging Details : carton box

Price : negotiation

Brand : Donjoy

SIZE : 1/2"-4“，DN25-DN100

Stanadard : DIN,3A,SMS,ISO

Connection : Welded, Clamped,Thread,

Polished : Mirror, Matt

Name : 2.5 inch Clamped Check Valve

Standard : DIN 11851 connections

Contact Now

SS316L 2.5 Inch Hydraulic Check Valves Middle Clamp Type Non Retention

Quick Detail:

Hydraulic Check Valves

Connection: Clamped, thread, Welded

Size: DN25/1" to DN 100/4", 1/2",3/4"

Easy disassemble

Small-size construction

DIN11851 connection (standard)

Specification

Product Name:	SS316L, 2.5 inch Clamped Check Valve,Non-retention valve with middle clamp type
Valve Body Material:	AISI 304 or AISI SS316L
Seal Material:	FPM
Max. Working Pressure:	10Bar
Opening pressure:	0.1-0.3bar
Max. Working Temperature:	120 degree C
Availably size:	DN15-DN100 or 1/2" - 4"
Availably connection:	Thread,Weld,Clamp
Availably standard:	DIN,SMS,3A
Certificate:	FDA,CE

Description:

Option of Check Valve

1. Connection: Clamp, Weld, Thread

2. SEAL: NBR, FPM,PTEF all according to FDA177.2600

3. Standard: DIN,SMS, RJT, IDF, ISO, 3A

Applications:

Check valve is a valve that prevents the fluid from flowing back and ensures to flow in only one direction.

It can be used to prevent the flow less from returning avoid pipe-hammering

It is used in the food processing,beverages, wine, oil,cosmetics, pharmaceutical and chemical industries.

Packaging Details

Bubble pack for each valve.

Outside packing are carton or plywood cases.

Or as per the request of customers.

Certificate

Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.
