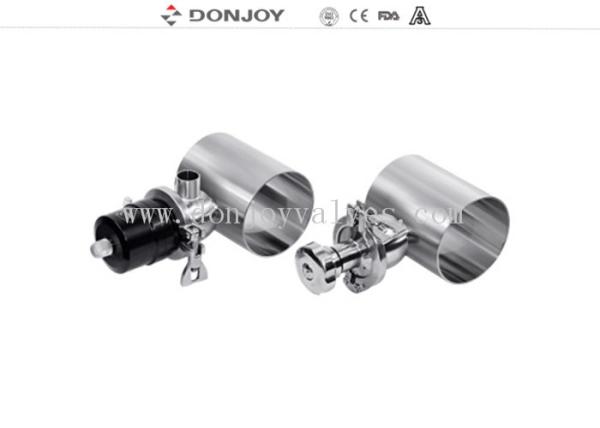

Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control

Name: Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control
Brand: DONJOY
Price: 1 USD

Quality Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control wholesale

Brand Name : DONJOY

Model Number : NO.

Certification : CE,3A,FDA

Place of Origin : China

MOQ : Negotiation

Price : negotiation

Payment Terms : T/T, LC, Credit Card

Packaging Details : carton box

Product Name : Pneumatic radial diaphramg valve with cylindrical port

Conveying port : 1 or 2

Logo : Donjoy or customized

Feature : Regulating fluid

Position of actuator : Be downward

Max pressure : 6bar

Contact Now

Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control

Specifications

Product Name:	Pneumatic Radial Diaphragm Valve for phamacy hygienic process
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM
MaxWorking Pressure:	6 Bar
Max.Working Temperature:	120 degree C
Availably size:	3/4''-2.5'', DN20-DN65
Availably connection:	Clamp/weld/thread/special connection
Availably standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual,Pneumatic
Availably structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Logo of product:	With "DONJOY" or customized
Combination of valve and actuator:	Flexible combination on valve body

Description

Various configuration of Diaphragm valve

1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)

2. Diaphragm valve with Control Unit(C-Top)

3. Valve position Regulator

4. Position Sensor Module

5. Plastic Handle

6. Stainless steel handle

7. Stianless steel acutor

8. Electric Diaphragm valve

9. Plastic Acutor

10. Body: Casting / Forging

Certificate

3A / 54-02 (1580), PED / 97 / 23 / EC, FDA. 177. 2600

Packaging

Bubble pack for each valve. Outside packing are carton or plywood cases.

Or as per the request of customers.

Delivery

Usually within 20 days after receiving T/T down payment.

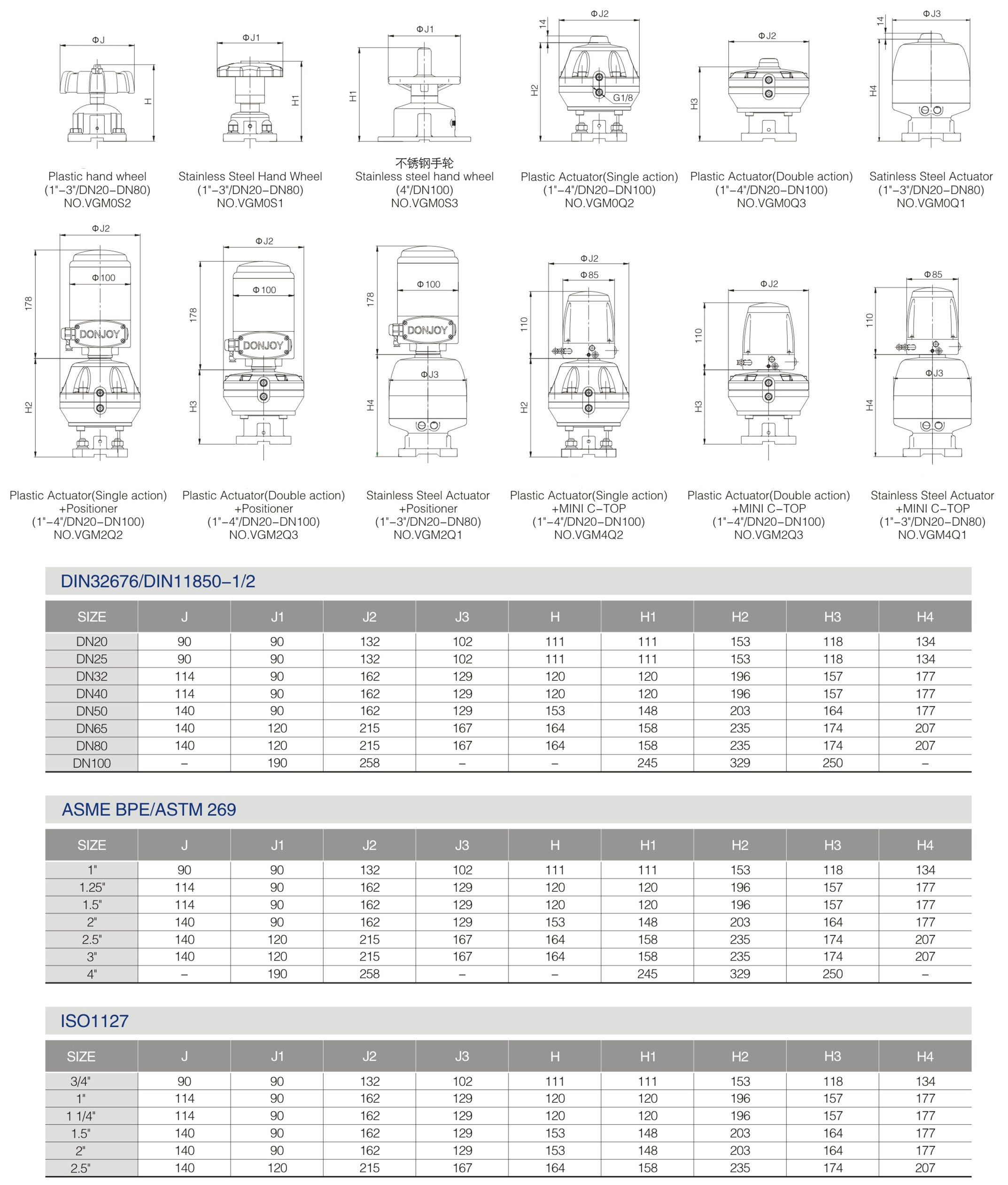

Product drawing

Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control

Product Tags:

sanitary sample valve

3 way diaphragm valve

Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control Images
