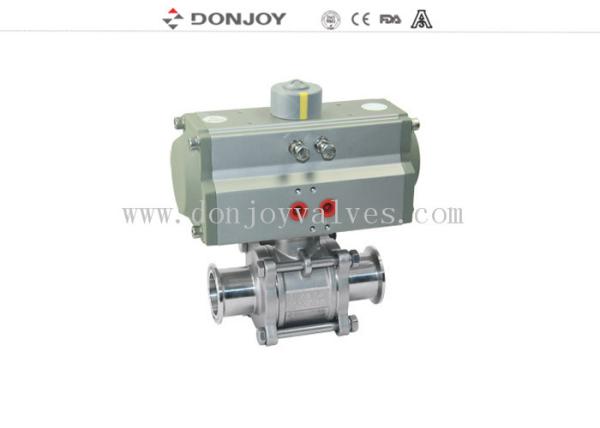

Aluminum pneumatic three-piece Non-retention full port ball valve with ss 304/316L
Description:
Type of Non-rentention ball valve
1. Pneumatic three-piece mon-retention ball valve
2. Pneumatic three-piece mon-retention ball valve with positioner
3. Pneumatic three-piece mon-retention ball valve with C-TOP
4. Pneumatic three-piece mon-retention ball valve With Mini C-TOP
5. Pneumatic three-piece mon-retention ball valve With Electric actuator
6. Aluminum acuator with positioner

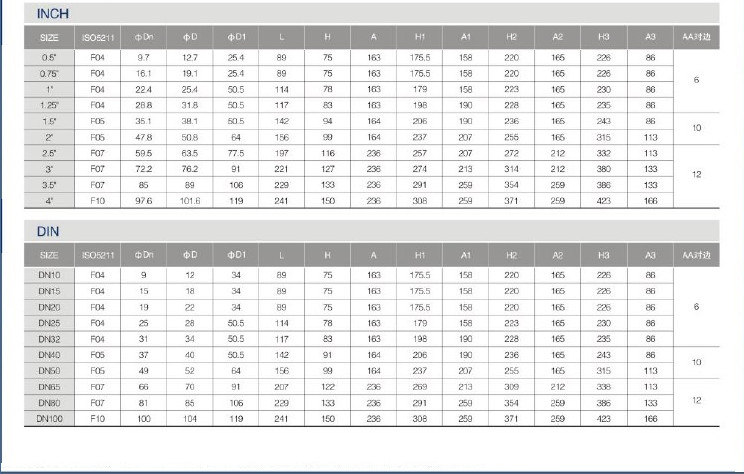

Specification
| Product Name: | Aluminum pneumatic three-piece Non-retention full port ball valve with ss3014/316L |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 150 degree C |
| Availably size: | DN25-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | Directly |
| Operated: | Manual,Pneumatic,Electric,control Head |
| Certificate: | FDA,CE,3A,ISO |
Applications:
The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, brewing and wine fine chemicals industries.
Technical Feature
All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life
It can also be equipped with the control unit, locator position sensor and other compatible automatic control system.
Competitive Advantage:
Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
