3/8" - 3/4" 316L mini - type sanitary reversing seat valve with no dead conner

Name: 38quot 34quot 316L mini type sanitary reversing seat valve with no dead conner
Brand: DONJOY
Price: 1 USD

Brand Name : DONJOY

Model Number : NO.MINI-VHX100Q1

Certification : CE,3A,FDA

Place of Origin : CHINA

MOQ : Negotiation

Price : US $200 - 1,200 / Piece

Payment Terms : T/T, LC, Credit Card

Supply Ability : 1000 Piece/Pieces per Month

Delivery Time : according to order

Packaging Details : carton box

Material : SS316L

Contact Now

3/8" - 3/4" 316L mini - type sanitary reversing seat valve with no dead conner

Tag
mini - type sanitary reversing seat valve
divert seat valve
seat valve

Specification

Item name	mini - type sanitary reversing seat valve with no dead conner
Material of valve body	SS316L
Material of seal ring	EPDM
Max. working pressure	10 bar
Max. working temperature	130°C
Size	3/8" - 3/4"
Connection	Threaded, welded, clamped
Standard	DIN, SMS, RJT, 3A
Operating mode	Pneumatic
Certificate	FDA, CE, ISO
Body seat	single seat
control unit	can be installed with C-TOP
work times	1.5 millions times
Advantage	Could meet high frequency on/off
Design	Seal - in - one piece design

Application
The valve is particularly suitable for filling machine, it could replace traditional rotary valve.

Design features
Integrated seal design
It could meet the function of high - prequency on/off.
No dead conner design and meet the requirements of 3A-85-00.
Seal ring meets the certification of FDA 177.2600.
Mini - type reversing valve.

Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.

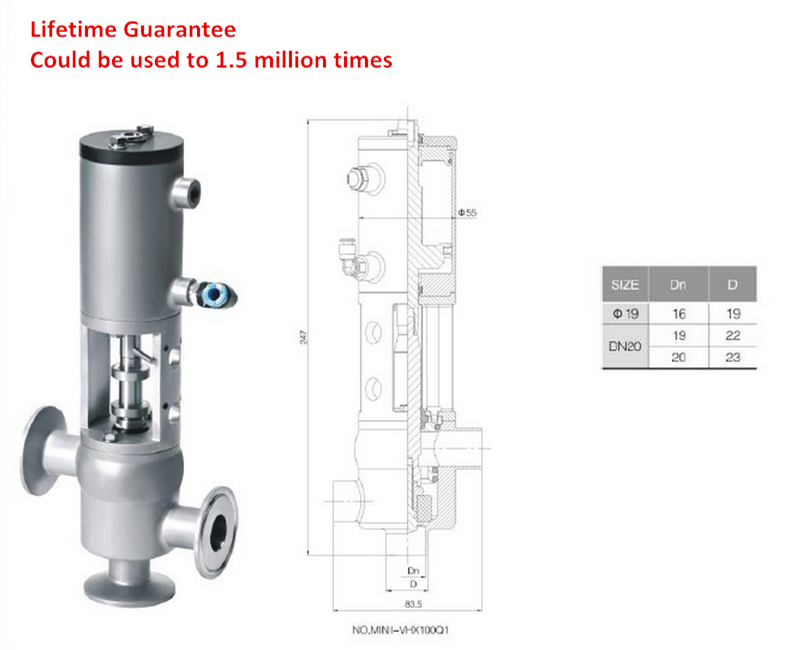

Product drawings
3/8" - 3/4" 316L mini - type sanitary reversing seat valve with no dead conner

Tag : Donjoy over change valve. Donjoy Reversing valve, Sanitary valve
