Sanitary 4 Inch 316 Switch Type 3PC Weld Butterfly Valve

  • 1
  • 2
  • 3

Brand Name : DONJOY

Certification : CE,3A,FDA

Place of Origin : China

MOQ : Negotiation

Price : negotiation

Payment Terms : T/T, LC, Credit Card

Packaging Details : carton box or wooden box

Product Name : 3PC butterfly valve

Materials : 304 / 316L

Size : DN10 - DN300, 1/2" - 12"

Operation : Electric

Connection : welded

Feature : With electric actuator

Structure : Butterfly

Contact Now

Sanitary Stainless Steel 4inch 316 AC220V Passive Output Switch type electronic 3PC Weld Butterfly Valve

Specifications

Product Name:

 Sanitary Stainless Steel 4inch 316 AC220V Passive Output Switch type electronic 3PC Weld Butterfly Valve

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10Bar

Max.Working Temperature:

120 degree C

Available size:

DN10-DN300, 1/2"-12"

Available connection:

Clamp/welding/thread/flange

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Electric

Control:

Passive output Electric actuator

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details:

bubble pack for each valve. Outside packing is carton or
plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.

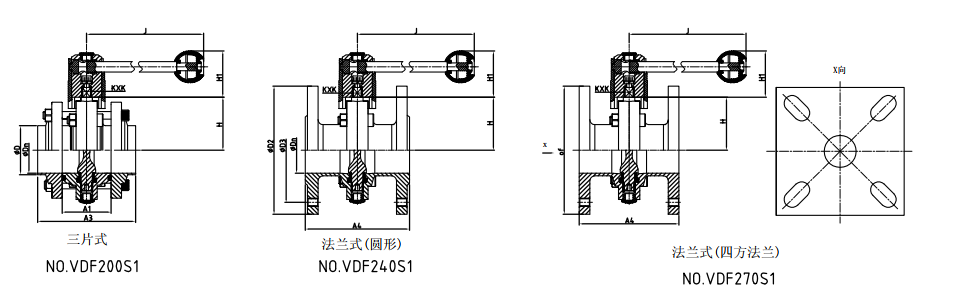

Sanitary 4 Inch 316 Switch Type 3PC Weld Butterfly ValveDrawing

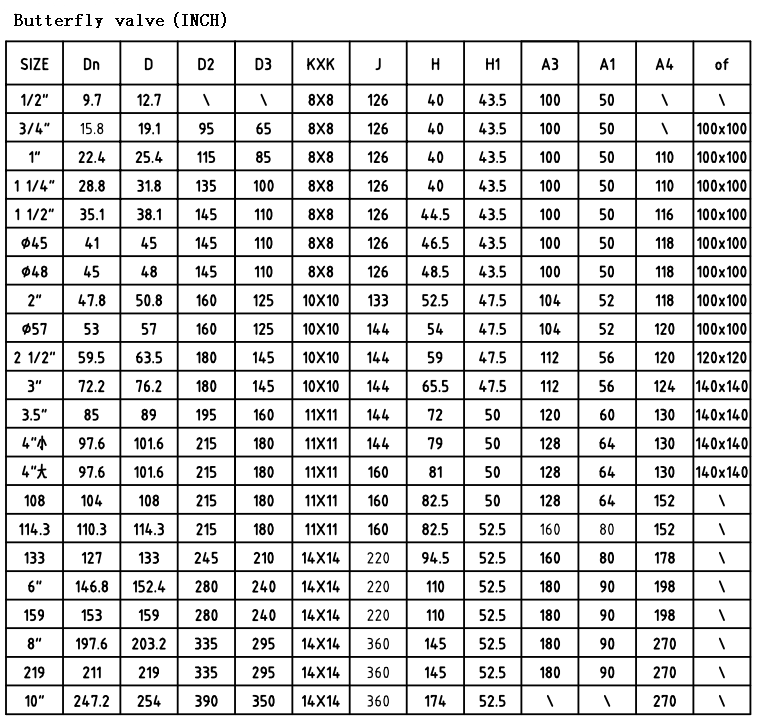

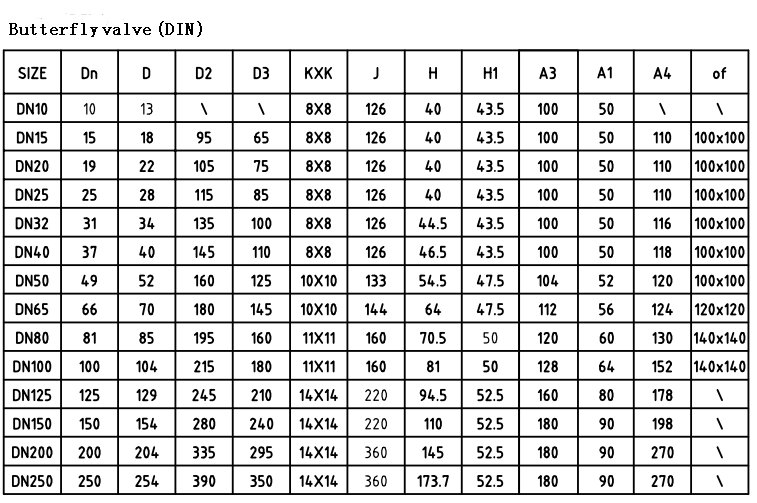

Sanitary 4 Inch 316 Switch Type 3PC Weld Butterfly Valve
Sanitary 4 Inch 316 Switch Type 3PC Weld Butterfly Valve
Sanitary 4 Inch 316 Switch Type 3PC Weld Butterfly Valve

Sanitary 4 Inch 316 Switch Type 3PC Weld Butterfly Valve

 Size Torque Recommend valve size
Butterfly valve Ball valve
DJ-5 30S-50N.M ≤4"-DN100 ≤2.5"
20S-30N.M ≤3"-DN80 ≤2"-DN50
10S-15N.M ≤2.5"-DN65 ≤1.5"-DN40
DJ-10 30S-100N.M

5"DN125

12"-DN300

 DN65-3"
20S-60N.M

4"-DN100

6"-DN150

 2.5"-DN65
15S-50N.M

3"-DN80

5"-DN125

 2"-2.5"
DJ-20 30S-200N.M - DN80-4"
15S-100N.M

5"-DN125

12"-DN300

 DN65-3"
DJ-40 30S-400N.M - -
15S-200N.M - DN80-4"


Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Operating Torque

Operating Torque (n.m) DN25 -1" DN40 -1..5" DN50 -2" 2.5" DN65 3" DN80 DN100 -4" DN125 DN150
3 4 5 10 12 14 18 25 40 55

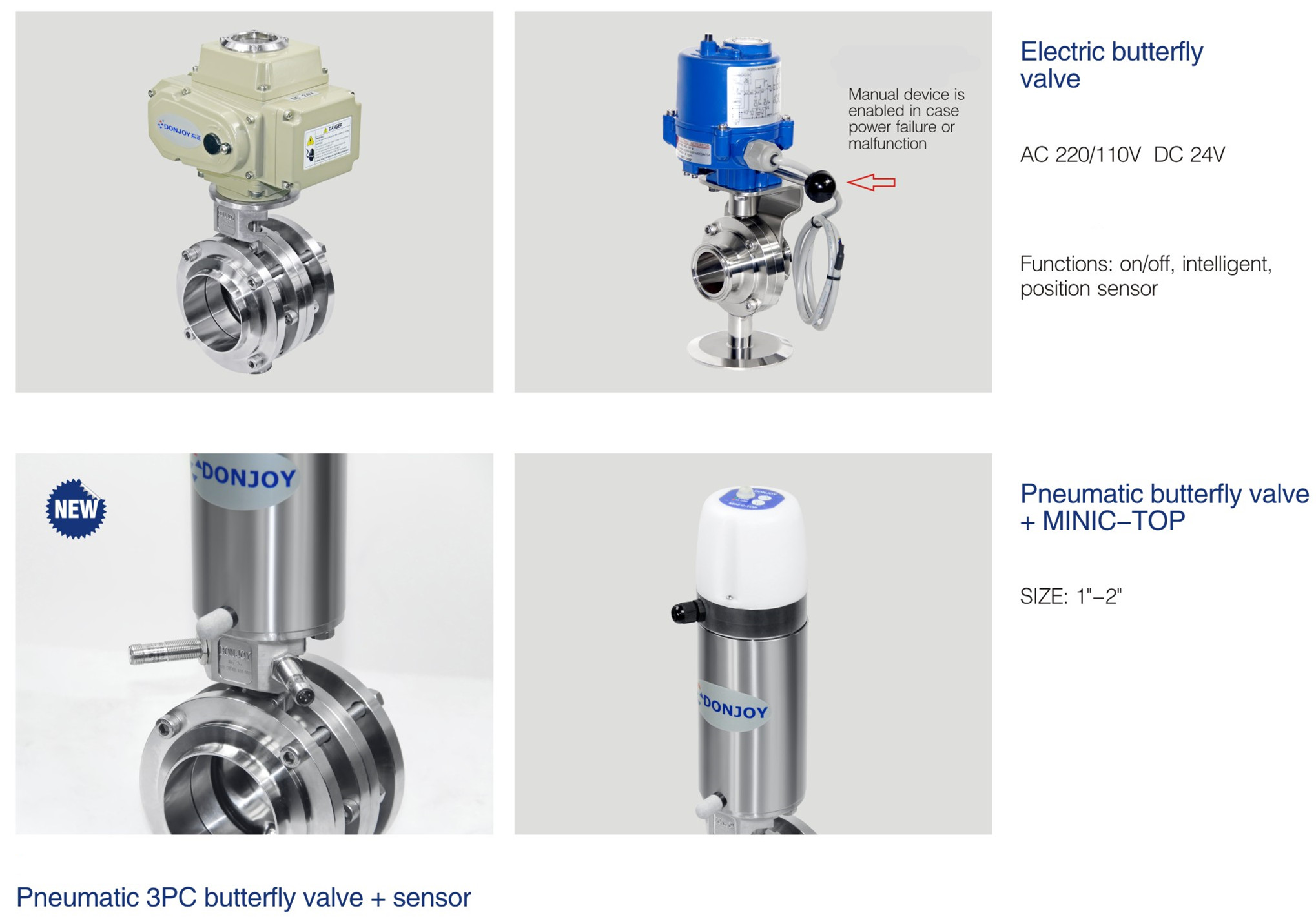

Options
Gasket: NBR / MVQ / FPM
Manual handle or pneumatic actuator
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.Sanitary 4 Inch 316 Switch Type 3PC Weld Butterfly Valve

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Display

Sanitary 4 Inch 316 Switch Type 3PC Weld Butterfly Valve
