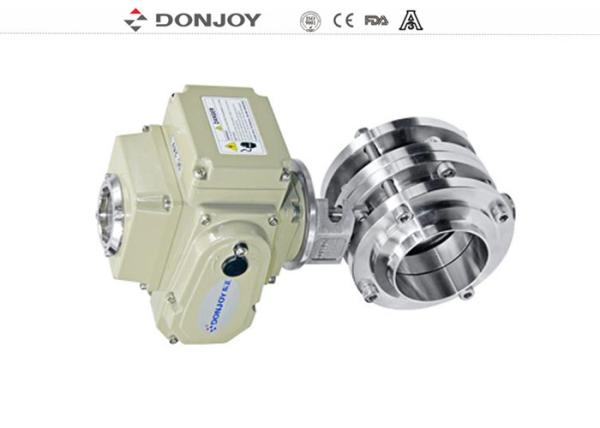

Hygenic SS304 316L Active Output AC220V Butterfly Valves

  • 1
  • 2

Brand Name : DONJOY

Certification : CE,3A,FDA

Place of Origin : China

MOQ : Negotiation

Price : negotiation

Payment Terms : T/T, LC, Credit Card

Packaging Details : carton box or wooden box

Product Name : 3PC butterfly valve

Materials : 304 / 316L

Size : DN10 - DN300, 1/2" - 12"

Operation : Electric

Connection : welded

Feature : With electric actuator

Structure : Electronic butterfly valve

Contact Now

DONJOY Hygenic Stainless Steel 304 316L AC220V Active Output On/off electronic 3PC butterfly valve

Specifications

Product Name:

 DONJOY Hygenic Stainless Steel 304 316L AC220V Active Output On/off electronic 3PC butterfly valve

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10Bar

Max.Working Temperature:

120 degree C

Available size:

DN10-DN300, 1/2"-12"

Available connection:

Clamp/welding/thread/flange

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Electric

Control:

Electric actuator

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details:

bubble pack for each valve. Outside packing is carton or
plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.


Hygenic SS304 316L Active Output AC220V Butterfly ValvesDrawing
Hygenic SS304 316L Active Output AC220V Butterfly Valves
Hygenic SS304 316L Active Output AC220V Butterfly Valves
Hygenic SS304 316L Active Output AC220V Butterfly Valves

Active output on/off

electric actuator

Hygenic SS304 316L Active Output AC220V Butterfly Valves

 Size Torque Recommend valve size
Butterfly valve Ball valve
DJ-5 30S-50N.M ≤4"-DN100 ≤2.5"
20S-30N.M ≤3"-DN80 ≤2"-DN50
10S-15N.M ≤2.5"-DN65 ≤1.5"-DN40
DJ-10 30S-100N.M

5"DN125

12"-DN300

 DN65-3"
20S-60N.M

4"-DN100

6"-DN150

 2.5"-DN65
15S-50N.M

3"-DN80

5"-DN125

 2"-2.5"
DJ-20 30S-200N.M - DN80-4"
15S-100N.M

5"-DN125

12"-DN300

 DN65-3"
DJ-40 30S-400N.M - -
15S-200N.M - DN80-4"

Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Operating Torque

Operating Torque (n.m) DN25 -1" DN40 -1..5" DN50 -2" 2.5" DN65 3" DN80 DN100 -4" DN125 DN150
3 4 5 10 12 14 18 25 40 55


Options
Gasket: NBR / MVQ / FPM
Manual handle or pneumatic actuator
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.Hygenic SS304 316L Active Output AC220V Butterfly Valves

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Display

Hygenic SS304 316L Active Output AC220V Butterfly Valves
