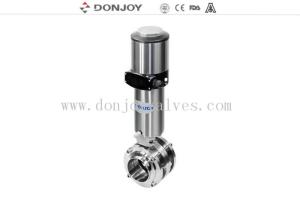

SS316L DF2 3 Pieces sanitary butterfly valves with control head
Operation Selection
Manual / Stainless steel actuator / Aluminum actuator
Technical Specifications:
Max.Pressure: 10Bar(DN25-DN100), 8Bar (DN125-DN150), 5Bar( DN200-DN300)
Min. Pressure:0.2Bar
Working Temperature: -10C° to +120 Degree( EPDM)
Specifications:
| Product Name: | 3PCS sanitary butterfly valves |
| Valve Body Material: | SS304/316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| MaxWorking Pressure: | 10Bar |
| Max.Working Temperature: | 120 degree C |
| Availably size: | DN10-DN300, 1/2"-12" |
| Availably connection: | Clamp/welding/thread/special connection |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual,Pneumatic, Electric |
| Handle application: | Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
| Control: | Smart valve positioner / C-TOP control / position sensor |
| Certificate: | 3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, etc |
| Model of plastic multi - position handle: | NO. VSB04 / NO.VSB06 / NO.VSB08 |
| Installation of handle: | On one side of valve |
Operating Principles
1.The butterfly Valve can be Operated automatically Through actuator or manually with the handle
2.The handle blocks the valve in the Open or Closed Position, Certainly there are the other postion avalibalbe
3.The actuator push piston of axial movement into 90Degree so that it controls butterfly valve.
Design and Features
Compact and robust Design
Available sizes DN25-DN300(1/2"-12")
Multi-Position handle is suitable up to DN100/4"
Pull hand is suitable up to DN25-DN300(1/2"-12") PED97/23EC FDA.177.2600
The valve body can be changeable with any kind of connection
Connection
Clamped, welded and threaded etc.
Delivery details
Usually within 20 days after receiving T/T down payment.
Operating Torque(N.M)
| DN25/1” | DN40/1.5” | DN50/2” | 2.5” | DN65 | 3” | DN80 | DN100/4” | DN125 | DN150 |
| 3 | 4 | 5 | 10 | 12 | 14 | 18 | 25 | 40 | 55 |

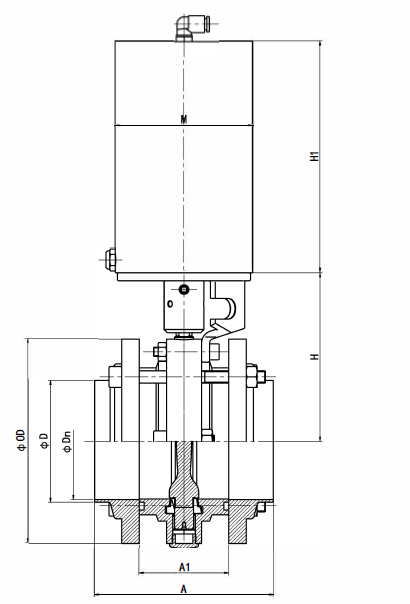

Drawing of 3pcs butterfly valves
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
